Equipment name: Microprocessor controlled electronic universal testing machine

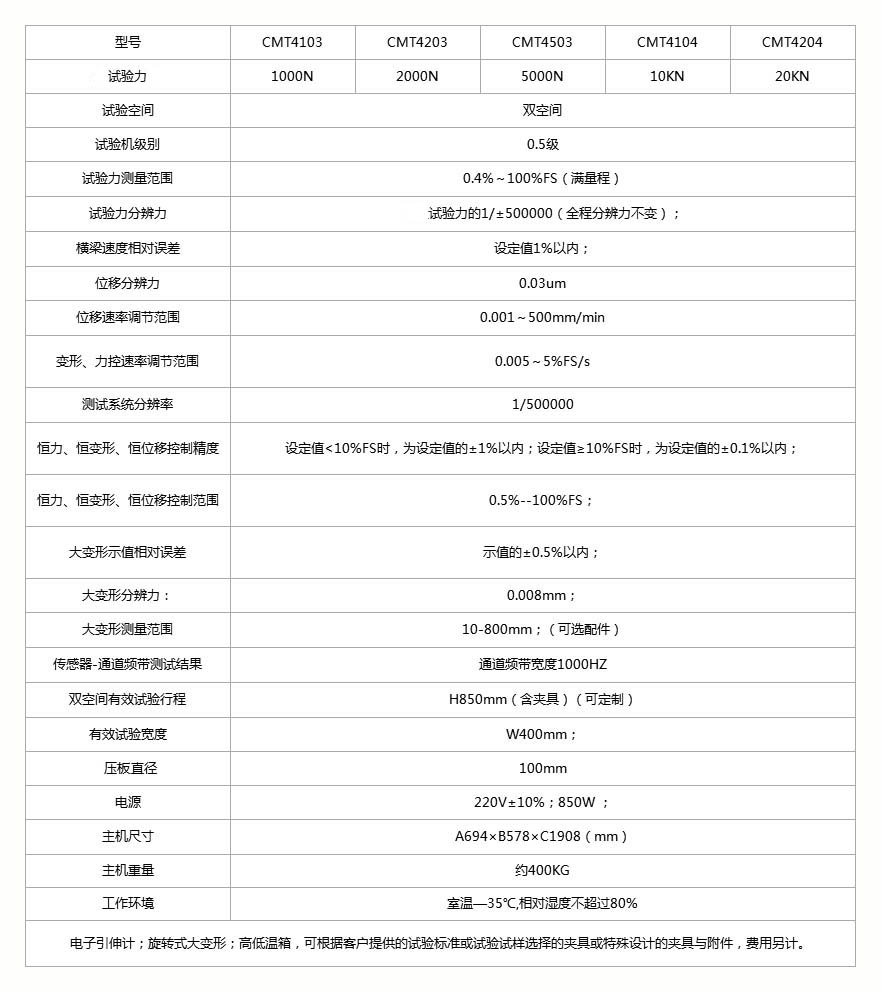

Product models: CMT4103, CMT4203, CMT4503, CMT4104, CMT4204

Main functions of the equipment: This equipment is suitable for testing the mechanical properties of metal materials, non-metallic materials, and composite materials, as well as analyzing and researching the process performance. Equipped with corresponding fixtures, it can perform tests such as tension, compression, bending, shearing, tearing, peeling, bursting, and fatigue. It can automatically calculate parameters such as test force, fracture force, elongation, tensile strength, yield strength, compressive strength, elastic modulus, shear strength, tear strength, peel strength, etc. At the same time, it can also achieve testing requirements such as constant elongation stress, constant stress elongation, and load retention.

This machine is widely used for material inspection and analysis in industries such as construction materials, aerospace, mechanical manufacturing, wires and cables, rubber and plastics, automotive manufacturing, powder metallurgy, bolts, etc. It is a conceptual testing equipment for scientific research institutions, colleges, industrial and mining enterprises, technical supervision, commercial inspection and arbitration, and other departments.

The host adopts a (single) dual space structure, and the experimental space is pulled up and pressed down (pulled down and pressed down), mainly composed of a base and a frame. The base is made of cast iron, and the frame is a portal structure, mainly composed of a bottom plate, upper, middle, and lower crossbeams, and connecting light bars. The crossbeams are made of steel parts. Using high-strength light bars to fix the upper crossbeam and worktable, forming a highly rigid structural framework.

Experiments can be conducted according to standards such as GB, ASTM, DIN, ISO, JIS, BS, etc.

Test standards met by the equipment:

Manufacturing standard for testing machines: GB/T 16491-2022 Electronic Universal Testing Machine;

Meet the test method standards: GB/T1040-2006 "Determination of tensile properties of plastics" GB/T1041-2008 "Determination of compressive properties of plastics" GB/T9341-2008 "Determination of bending properties of plastics" GB/T 228-2010 "Room temperature tensile test method for metallic materials" GB/T 7314-2007 "Room temperature compression test method for metallic materials" (users can provide relevant test standards, no more than 5)
