Equipment name: Microprocessor controlled electronic universal testing machine

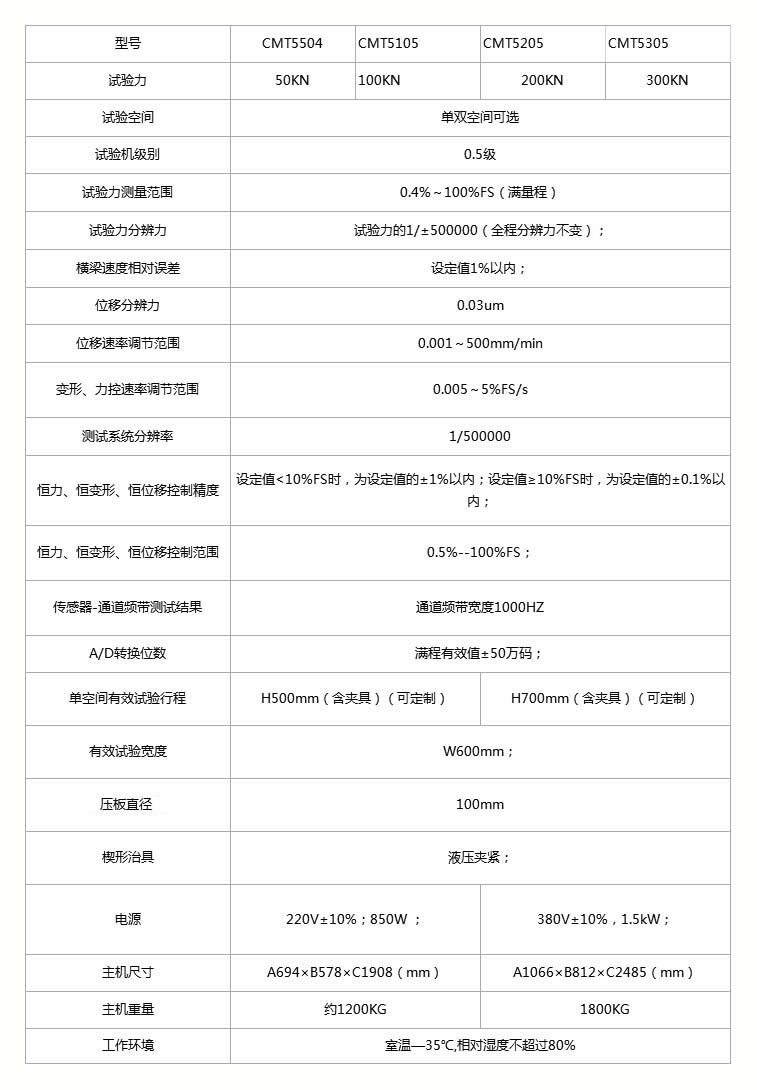

Product models: CMT5504, CMT5105, CMT5205, CMT5305

Main functions of the equipment: This equipment is suitable for testing the mechanical properties of metal materials, non-metallic materials, and composite materials, as well as analyzing and researching the process performance. Equipped with corresponding fixtures, it can perform tests such as tension, compression, bending, shearing, tearing, peeling, bursting, and fatigue. It can automatically calculate parameters such as test force, fracture force, elongation, tensile strength, yield strength, compressive strength, elastic modulus, shear strength, tear strength, peel strength, etc. At the same time, it can also achieve testing requirements such as constant elongation stress, constant stress elongation, and load retention. This machine is widely used for material inspection and analysis in industries such as building materials, aerospace, mechanical manufacturing, wires and cables, rubber and plastics, automotive manufacturing, powder metallurgy, fasteners, etc. It is an ideal testing equipment for scientific research institutions, colleges, industrial and mining enterprises, technical supervision, commercial inspection and arbitration, and other departments.

Experiments can be conducted according to standards such as GB, ASTM, DIN, ISO, JIS, BS, etc.

Manufacturing standard for testing machines: GB/T 16491-2022 Electronic Universal Testing Machine

GB/T 228-2010 "Metallic Materials Room Temperature Tensile Test Method" GB/T 232-2010 "Metallic Materials Bending Test Method" GB/T 7314-2007 "Metallic Materials Room Temperature Compression Test Method" (Users can provide relevant test standards, no more than 5)

Product details:

The host adopts a single space structure, and the experimental space is pulled down and pressed down, mainly composed of a base and a frame. The base is made of cast iron, and the frame is a gantry structure, mainly composed of a bottom plate, upper, middle, and lower crossbeams, and connecting light bars; The coaxiality of the testing machine is good (<8%). The upper, middle, and lower beams are made of ductile iron, with a tensile strength of 60k (600MPa) and a yield strength of 40k (400Mpa); High strength light bars are used to fix the upper crossbeam and worktable, forming a highly rigid structural framework. The corrosion resistance and oxidation resistance of ductile iron exceed those of cast steel. Due to the spherical graphite microstructure of ductile iron, it is superior to cast steel in reducing vibration capacity, making it more conducive to stress reduction. This machine has a beautiful appearance, good stability, high rigidity, high control accuracy, high work efficiency, low noise, and is energy-saving and environmentally friendly.

This series of models has multiple optional model structures, including space models, pull-up and pull-down dual space models, and pull-down and pull-down dual space models. Environmental boxes and high-temperature furnaces can be added for environmental testing.
